Place of Origin : Zhejiang, China

Brand Name : OEM

Model Number : TH-V 26

Gears : 7 speed

Range per Power : 31 - 60 km

Frame Material : Aluminum Alloy

Wheel Size : 20"

Max Speed : 30-50Km/h

Voltage : 48V

Power Supply : lithium battery

Braking System : Disc Brake

Torque : 80-90 Nm

Charging Time : >3 hours

Motor position : Rear Hub Motor

Battery Position : Integrated Battery

Battery Capacity : 13AH

Product name : electric fat bike

Battery : 48V 13Ah lithium battery

Brake : Front and rear disc brakes

Color : Black

Display : LCD Display

Motor Power : 48V 500W(750/1000W optional)

Tire : 20"*4.0

Frame : Aluminum alloy

Derailleur : Shimano 7-speed-gears

Warranty : 2 years

Price : $995.00/pieces 1-29 pieces

Contact Now

Product Description

Frame	Aluminum alloy	Motor	48V 500W Brushless hub motor
Battery	48V 13Ah lithium battery	Max speed	25-35km/h(can be adjust as request)
Charger	48V 2A smart charger	Charging time	4-6 hours
Range per charge	50-60km with pedal assist	Gears	7 speed gears
Front fork	Al alloy with suspension	Brakes	Front and rear disc brakes
Tires	20"x4.0 fat tires	Display	Digital LCD display
Lights	LED headlight and taillight	Saddle	Long soft saddle available for 2 person
Weight	27kgs	Loading capacity	200kgs
Riding mode	Throttle/Pedal assist or both	Package	7 layers strong corrugated carton
Certification	CE,EN15194,RoHS	Warranty	2 years

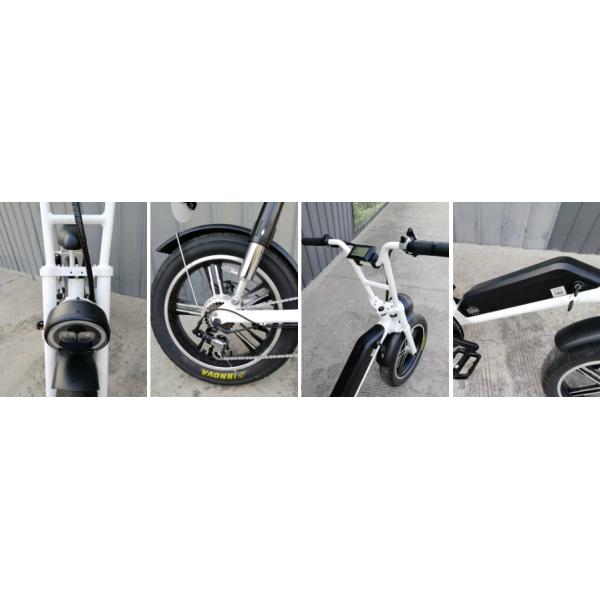

Detailed Images

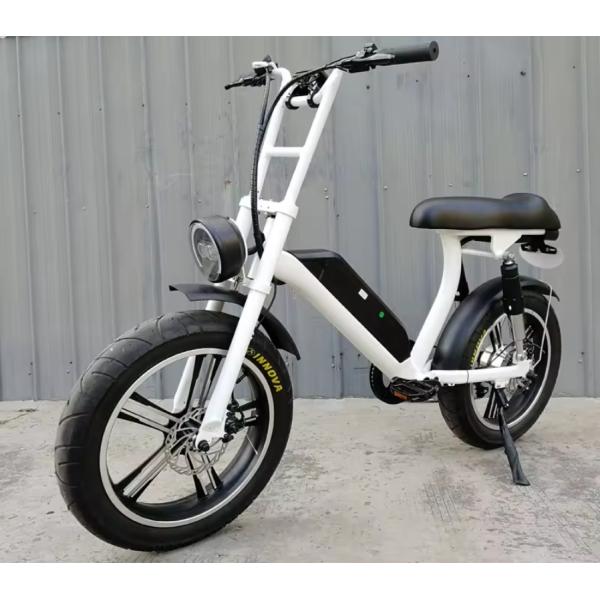

Full Suspension Electric Fat Tire Bike
